Purification equipment

  • Fume hood

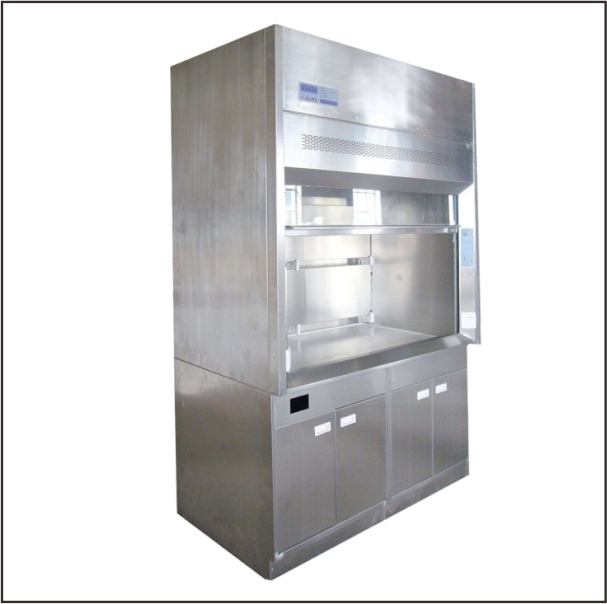

Fume hood

Fume hood

  • Product description: The function of the fume hood is to discharge the harmful gases generated in the experiment and protect the health of the experimental personnel. It is an indispensable part of the laboratory ventilat
  • INQUIRY   EMAIL

Features

Structural combination: It adopts all-stainless steel integrated modular cabinet, independent water, electricity and pipeline system to accommodate cabinet design;

Outer box body: It is made of all stainless steel stamping and forming with a thickness of 1.2mm or more;

The countertop and optional sink 304 are all stainless steel andresistant to corrosion;

Lighting: 30W fluorescent lamp;

Handle: SUS304 stainless steel matt semi-circular handle;

Deflector: The baffle discharges harmful gases in different height spaces from different sections;

discharges the air in the fume hood at a speed of 0.5 m/s on the operating surface to ensure that no residual gas exists;

Window: The glass window can be pulled down and stayed in any position to provide a safer and more comfortable test space for the experimenter;

Technical Parameters

Model TFG-Q12 TFG-Q15
Working face wind speed 0.25~0.38m/s 0.60m/s
Air volume 1100~1800m3/h 1100~1800m³/h
Exhaust resistance 5~12mmH2O 5~12mmH2O
Air outlet size Φ200-Φ300mm Φ200-Φ300mm
Exhaust wind speed 0.3m-0.6m/s 0.3m-0.6m/s
Inlet pressure >0.5Pax >0.5Pax
Power ≤300W ≤300W
power supply AC,220V50Hz AC,220V50Hz
Weight 160kg 180kg
Inner diameter size L*D*H 1100×700×700mm L*D*H 1400×700×700mm
Diameter size L*D*H 1200×750×2150mm L*D*H 1500×750×2150mm
Exhaust pipe diameter φ250mm φ250mm
