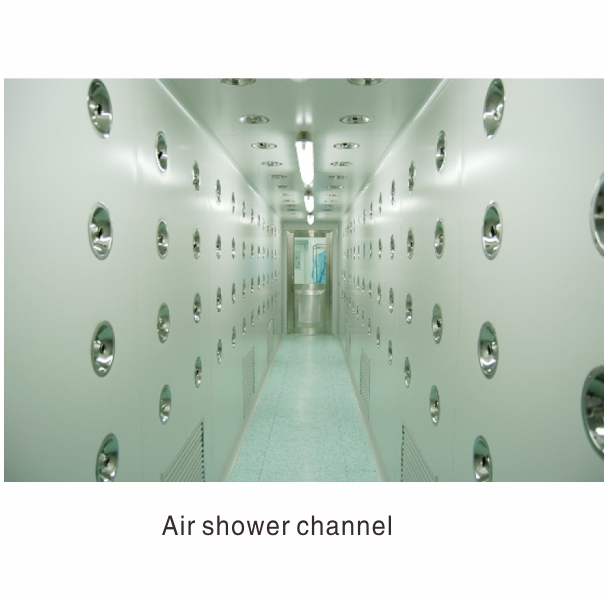

Working principle:
The air in the air shower channel enters the static pressure box through the primary filter through the effect of the fan. After being filtered by the high-efficiency air filter, clean air is ejected from the nozzle of the air shower chamber at high speed. The nozzle angle can be adjusted and can be effectively blown out. The dust attached to the surface of people or items is collected and then recycled into the primary air filter. This circulation can achieve the purpose of air shower.
Main feature:
1.Using the arc corner which is more suitable for the principle of clean room
2. The system automatically controls the operation, the two doors are electronically interlocked, and is equipped with a photoelectric sensor, a one-way channel air shower room, which enters from the non-clean area. After the door is closed, the infrared sensor will blow the shower, and the door will be locked after the shower. Able to walk out of the air shower room;
3. Manufacture of overall cold-rolled steel plate, electrostatic spraying treatment on the outer surface
4. The door, floor and nozzle are made of stainless steel, which is beautiful and generous.
5, soft-key touch-type time relay, LED display and set the shower time, adjustable in the range of 10-99s, double doors automatically locked during the shower;
6, using the primary and high-efficiency two-stage filtration system, with partition high-efficiency filter, the filtration efficiency is: 99.99%, to ensure the purification level
7. The wind speed of the air outlet of the air nozzle is as high as 25m / s or more, and the wind speed on the human body is more than 18m / s.
8. Adopt EVA sealing material, high sealing performance
9, using imported electronic components, reliable performance
10. Equipped with all-stainless steel multi-angle adjustable nozzle, double volute outer rotor, large air volume and low noise fan, surface wind speed is greater than 25m / s
11. Advanced noise reduction and mute device system.
12. Modular design is adopted, which is extremely convenient for assembly and transportation.
13. Single-chip microcomputer controller, intelligent voice prompt system, when the person is blowing the shower, the control system will automatically issue a voice prompt to let people complete the entire blowing and dust removal process in order.
14, LED display can clearly indicate the shower time and status. The shower time is adjustable, ranging from 10-99S.
15. The infrared photoelectric automatic induction switch controls the blowing shower to avoid unmanned air blowing.
