Purification equipment

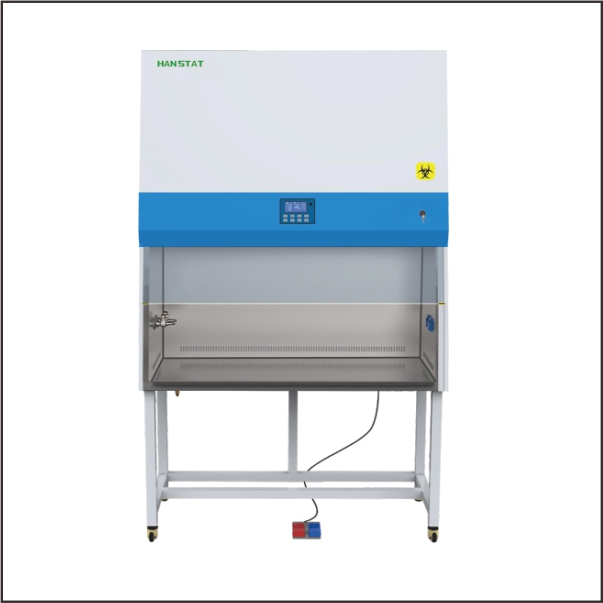

Biological safety cabinet

Product description: The working principle of the biological safety cabinet is mainly to pump the air inside the cabinet to keep the negative pressure inside the cabinet, and to protect the staff through vertical airflow;
INQUIRY EMAIL

The biosafety cabinet prevents box-type air purification negative pressure safety devices containing aerosols from dangerous or unknown biological particles during the experimental operation. It is widely used in scientific research, teaching, clinical testing and production in the fields of microbiology, biomedicine, genetic engineering, biological products, etc. It is the most basic safety protection device in the first-level protective barrier of laboratory biosafety.

Half-row biological safety cabinet

Technical Parameter

Model Parameters	BSC-1100A2-X	BSC-1100A2-X	BSC-1500A2-X
Table height from the ground	750mm (size can be modified according to requirements)
Wind speed	Average falling wind speed：0.33±0.025m/s
Wind speed	Average inlet wind speed：0.53±0.025m/s
Total system exhaust	230m³/h	360m³/h	500m³/h
rated power	≤1000W	1100W	1800W
Noise	≤60dB（A）	≤65dB（A）	≤65dB（A）
illumination	≥1000Lx	≥1000Lx	≥1000Lx
Filtration efficiency	99.999%（φ0.3μm）	99.9995%（φ0.3μm）	99.9995%（φ0.3μm）
weight		Gross weight：243KG	Gross weight：316KG
weight		Net weight：227KG	Net weight：295KG
Operators	Single person	Single person	1-2 person

Full row biological safety cabinet

Technical Parameter

Model Parameters	BSC-1100B2-X	BSC-1500B2-X
Table height from the ground	750mm (size can be modified according to requirements)
Wind speed	Average falling wind speed：0.33±0.025m/s
Wind speed	Average inlet wind speed：0.53±0.025m/s
Total system exhaust	1270m³/h	360m³/h
rated power	≤1800W	1100W
Noise	≤65dB（A）	≤65dB（A）
illumination	≥1000Lx	≥1000Lx
Filtration efficiency	99.9995%（φ0.3μm）	99.9995%（φ0.3μm）
weight	Gross weight：300KG	Gross weight：316KG
weight	Net weight：279KG	Net weight：295KG
Operators	Single person	1-2 person
