Purification equipment

  • Purification-roller-shutter
  • Purification-roller-shutter
Purification-roller-shutterPurification-roller-shutter

Purification-roller-shutter

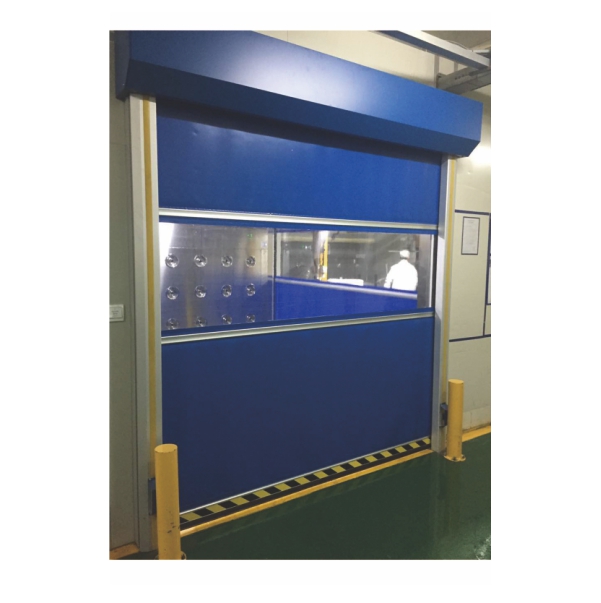

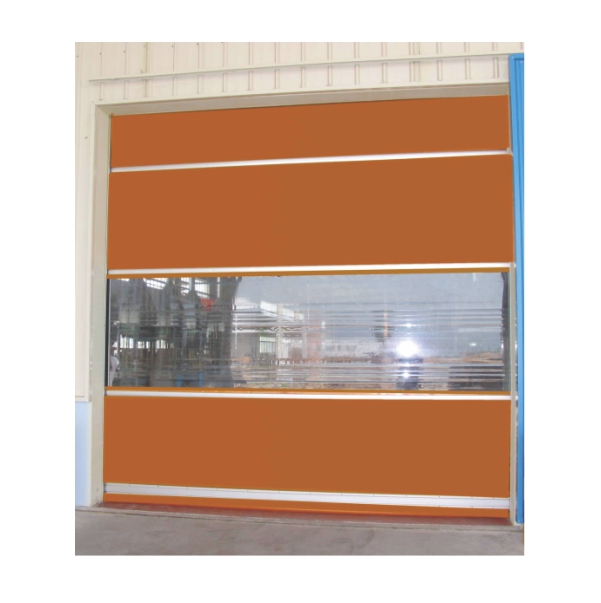

  • Product description: The quick door is suitable for frequent opening and closing or fast material flow passages in industrial plants and auxiliary buildings. All the openings can be installed on the outer wall or inner
  • INQUIRY   EMAIL
product description:
Maximum size: the largest size can be achieved W6000×H6000
Opening speed: opening speed 0.6~1.2 m/S (adjustable)
Closing speed: closing speed 0.5 m~0.7m/S (adjustable)
Door frame structure: high-quality cold-rolled steel plate structure, multi-channel electrostatic spray process
Drive unit: high-speed motor for high-speed door, turbine worm reducer, brake system
Control system: PLC microcomputer control, communication interface
Frequency conversion system: standard configuration, running end buffer design to better protect the drive system
Safety performance: safety photoelectric (standard built-in hidden) at the bottom of the track
Limit system: double contact protection limit device, strong anti-interference ability, no error in operation
Sealing performance: double-layer industrial brush for track, soft buffer sealing treatment at the bottom
Power source: single phase 220V, 50HZ, 13A
Wind resistance rating: 7 (can enhance wind resistance)
Curtain material: high-strength industrial coated base fabric, special thickness of 0.8~1.0mm
Flame retardant rating: GB8624 B1
Working temperature: -30 ° C ~ +70 ° C
Technical Parameter:
Dimensions (mm): W3000*D3000*H3000
Internal dimensions (mm): W2000*D3000*H2500
Air shower stainless steel nozzle diameter: Φ25mm
Machine power (Kw): 4.5kw
Air volume (m3/min): 9000
High efficiency filter size (mm): 600*600*120*6pcs
Shower time: 0-99S adjustable
Electronic interlocking: Yes
UV sterilization: optional
