Purification equipment

Efficient-air-supply

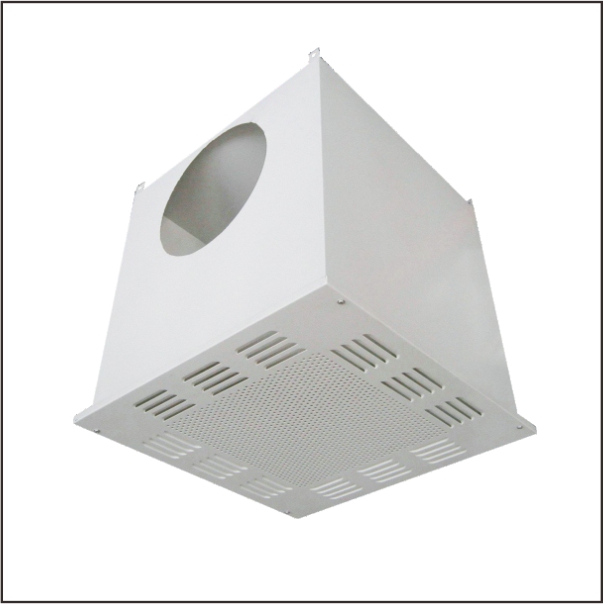

The air inlet mode has a side inlet and a top inlet, and the flange has a square and a circular structure.
The cabinet is made of high-quality cold-rolled steel plate, and the outer surface is electrostatically sprayed with a diffuser.
Yǒu bǎowēn céng, bùxiùgāng cáizhì kě gōng xuǎnzé 14/5000 Available in insulation and stainless steel
Product description: 1. The cabinet is made of high-quality cold-rolled steel plate, and the outer surface is electrostatically sprayed with a diffuser. 2. Compact structure, reliable sealing performance, side air inlet
INQUIRY EMAIL

Product description:

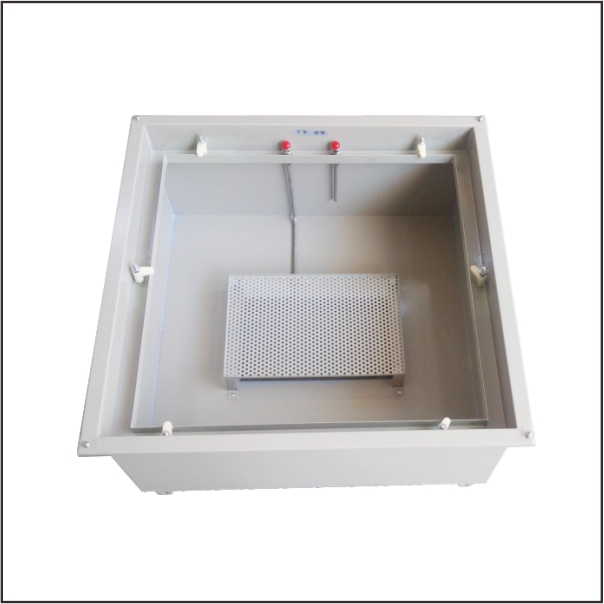

The high-efficiency air supply port is an ideal terminal filter device for the 1000-, 10,000-, and 100,000-class air-conditioning systems. It can be widely used in the purification of air-conditioning systems in the pharmaceutical, health, electronics, and chemical industries. The high-efficiency air supply port is used as a terminal filtering device for retrofitting and newly-built clean rooms of 1000-300,000 levels, and is a key device to meet the purification requirements. The high-efficiency air supply port includes a static pressure box, a diffuser plate, a high-efficiency filter, and the interface with the air duct may be a top or a side connection.

Technical Parameters

Model	Outlime dimensions（mm）	Filter size（mm）	air volume（m³/h）	Connection size（mm）	opening size（mm）
GKF-5′ⅡB	370X370X500	320X320X220	500	200X200	380X380
GKF-10′ⅡA	534X534X500	484X484X220	1000	320X200	544X544
GKF-10′ⅡC	660X660X550	610X600X150	1000	250X250	670X670
GKF-12′ⅡA	870X650X550	820X600X150	1200	320X250	880X660
GKF-15′ⅡA	776X534X500	726X484X220	1500	500X200	786X544
GKF-15′ⅡB	680X680X500	630X630X220	1500	500X200	690X690
GKF-15′ⅡC	965X660X550	915X610X150	1500	400X250	975X670
GKF-20′ⅡA	1018X534X550	968X484X220	2000	500X250	1028X544
GKF-20′ⅡB	1270X660X550	1220X610X150	2000	500X250	1280X670
GKF-22′ⅡA	995X680X550	945X630X220	2200	500X250	1005X690
GKF-30′ⅡA	1310X680X550	1260X630X220	3000	630X200	1320X690
