Purification equipment

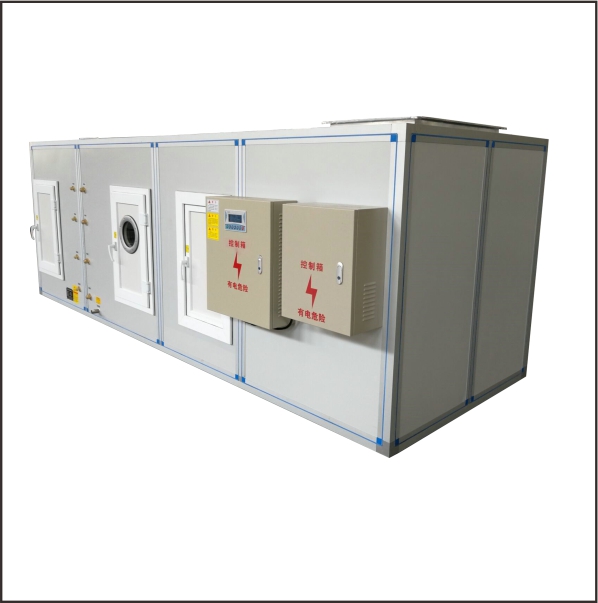

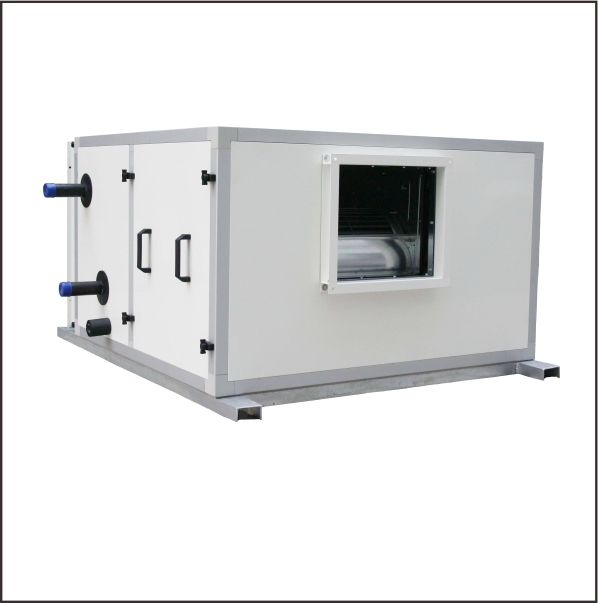

Air-conditioning-unit

Product description: The air conditioning unit is an air handling unit assembled from various air handling functional sections. Suitable for air conditioning systems with resistance greater than 100Pa. The air handling fu
INQUIRY EMAIL

Features:
The unit is equipped with a new return air mixing section and filter section, a new return air mixing section, and an initial effect filtration section. Secondary return air section, table cold water retaining section, steam heating section, electric heating section, dry steam humidification section, fan section, medium efficiency filter section, equal flow section, muffling section, fan air supply section, etc. The design institute and users have flexible selection of units.
1. The supporting fan of the unit adopts the domestic advanced KKF (or TDKF) type air conditioner special double inlet air centrifugal fan, which has the characteristics of high efficiency, low noise and wide head range, which can meet the low pressure head range system and the medium pressure head constant temperature system. High pressure head purification system is required.
2, the unit's supporting heat exchanger (cooler, heater) is copper tube string aluminum sheet double flange, mechanical expansion tube, good steel, high heat exchange efficiency, wind resistance and water resistance is small, and can be used for both hot and cold .
3. The filter section of the unit adopts polyester non-woven bag filter, which has the advantages of high filtration efficiency, low resistance, detachable, easy to clean and filter material replaceable.
4. There are two kinds of steam (or hot water) heating and electric heating in the heating section of the unit. There are also two types of dry steam and electric humidification in the humidification section. The design institute and users can choose according to the actual situation.

5. In order to meet the requirements of different occasions, different uses and special performances of the users, the company can design and manufacture according to non-standard sizes.

Applications

It is mainly used in air purification systems of various clean workshops. Such as industrial electronics factory, precision machinery manufacturing plant, textile workshop, GMP pharmaceutical factory, cosmetics, food factory, pure water workshop, hospital surgery department, ICU and other occasions.

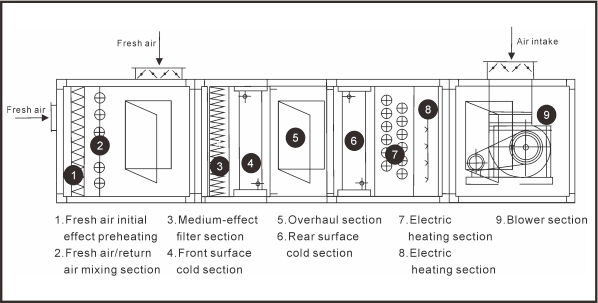

Schematic diagram of each functional segment

Technical Parameter

Model Parameter			zkw-10	zkw-20	zkw-30	zkw-40	zkw-50	zkw-60	zkw-70	zkw-80
Boxbody	Rated air volume（m³/h）		10000	20000	30000	40000	50000	60000	70000	80000
	Fixed amount of wind（Kw）		58.15	116.28	174.42	232.56	232.56	232.56	407.05	465.12
	Fixed amount of heat（Kw）		69.78	139.53	209.3	209.07	209.07	384.84	488.37	588.14
	cross dimensions （mm）	High	1500	1700	2100	2300	2300	2600	2800	2900
	cross dimensions （mm）	width	1580	1780	2180	2380	2380	2680	2880	2980
Fan	Model Parameter		KKF-450	KKF-630	KKF-710	KKF-800	KKF-830	KKF-900	KKF-1000	KKF-1100
Fan	Air volume range（m³/h）		8255~16922	16411~25026	16411~25026	34030~45941	45941~57852	57038~69590	63438~75680	70548~88838
Pipe interface	Cooling water coptrol nominal	2 rows	Dg50	Dg50	Dg50	Dg50	Dg50	Dg50	Dg50	Dg50
		4 rows	Dg50	Dg65	Dg65	Dg65	Dg65	Dg65	Dg65	Dg65
		8 rows	Dg50	Dg65	Dg65	Dg65	Dg65	Dg65	Dg65	Dg65
	Steam pipe Nominal size（mm）		Dg50	Dg50	Dg50	Dg80	Dg80	Dg100	Dg100	Dg100
