Product description:

The transfer window is an auxiliary device for the clean room. It is mainly used for the transfer of small items between the clean area and the clean area, between the clean area and the non-clean area, to reduce the number of times the clean room is opened, and to pollute the clean room. Reduce to a minimum. The transfer window is made of stainless steel and is smooth and smooth. The double doors are interlocked to each other to effectively prevent cross-contamination. They are equipped with electronic or mechanical interlocking devices and equipped with ultraviolet germicidal lamps.

The classification transfer window is divided into three categories:

1, Electronic chain transfer window

2, mechanical chain transfer window

3, self-clean transfer window transfer window

Technical Parameter:

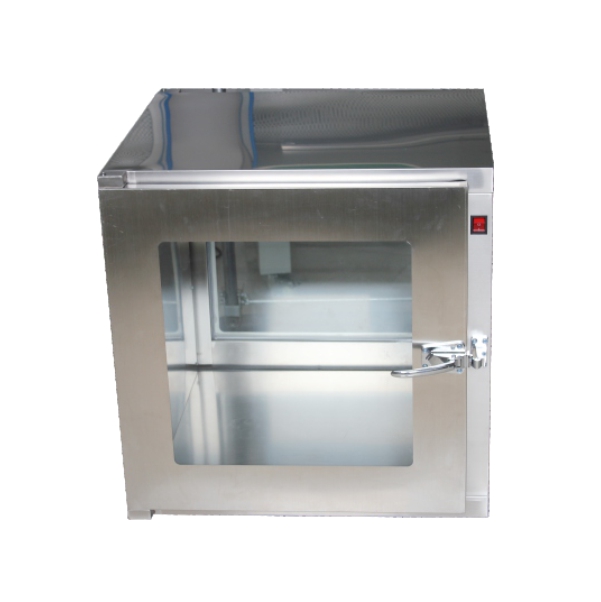

Mechanical chain transfer window
Model
Parameters
Internal dimensions
(W*D*H)mm
External dimensions
(W*D*H)mm
HB-MI-400 400*400*400 520*480*460
HB-MO-400 280*320*340 400*400*400
HB-MI-500 500*500*500 620*580*560
HB-MO-500 380*420*440 500*500*500
HB-MI-600 600*600*600 720*680*660
HB-MO-600 480*520*540 600*600*600

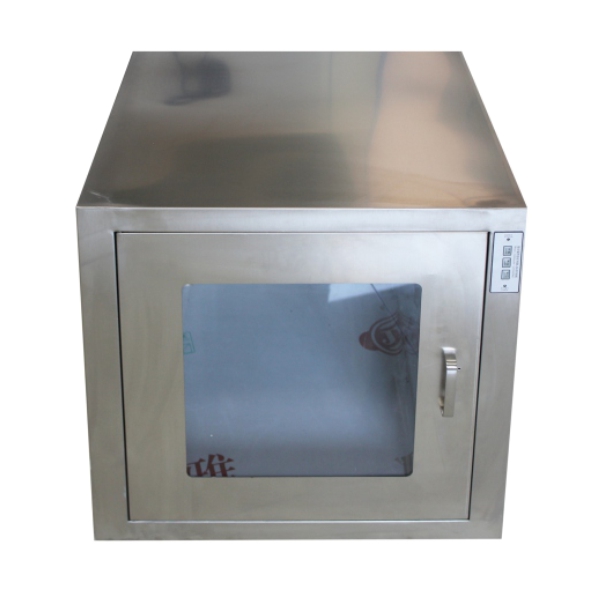

Electronic chain transfer window
Model
Parameters
Internal dimensions
(W*D*H)mm
External dimensions
(W*D*H)mm
HB-EI-400 400*400*400 520*480*460
HB-EO-400 280*320*340 400*400*400
HB-EI-500 500*500*500 640*580*560
HB-EO-500 380*420*440 500*500*500
HB-EI-500 600*600*600 740*680*660
HB-EO-500 480*520*540 600*600*600

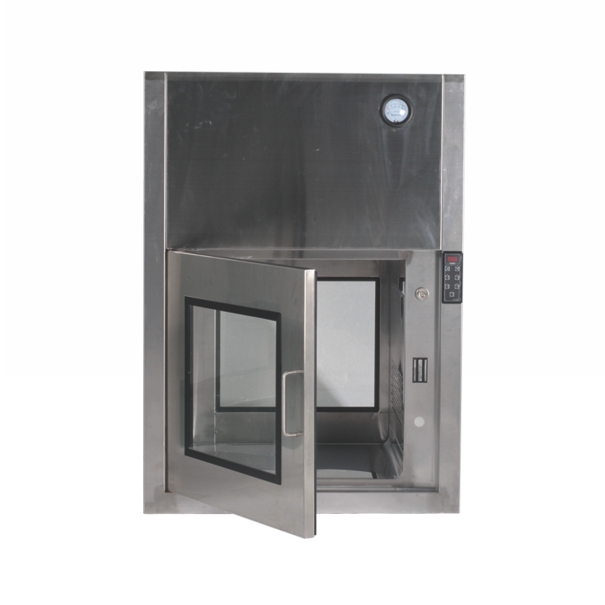

Self-cleaning transfer window
Model
Parameters
Internal dimensions
(W*D*H)mm
External dimensions
(W*D*H)mm
HB-SI-500 500*500*500 620*1000*560
HB-SI-600 600*600*600 720*1000*660
HB-SI-700 700*700*700 820*1200*760
HB-SI-800 600*600*600 920*1300*860
HB-SI-900 900*900*900 1020*1400*960
HB-SI-1000 1000*1000*1000 1120*1500*1060
