Air filter

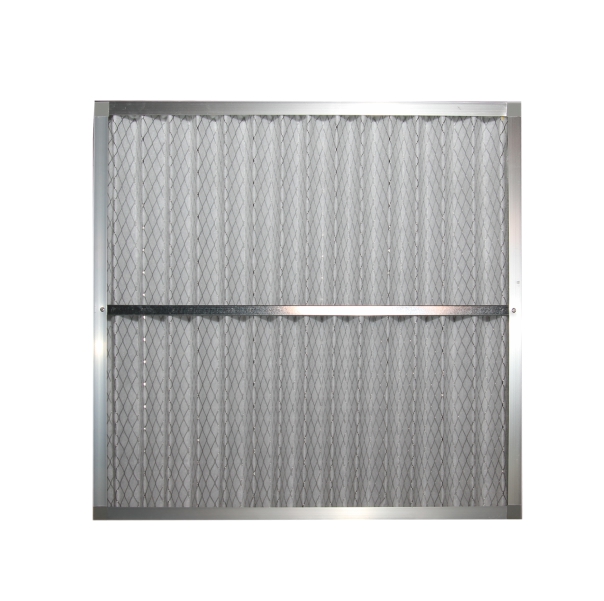

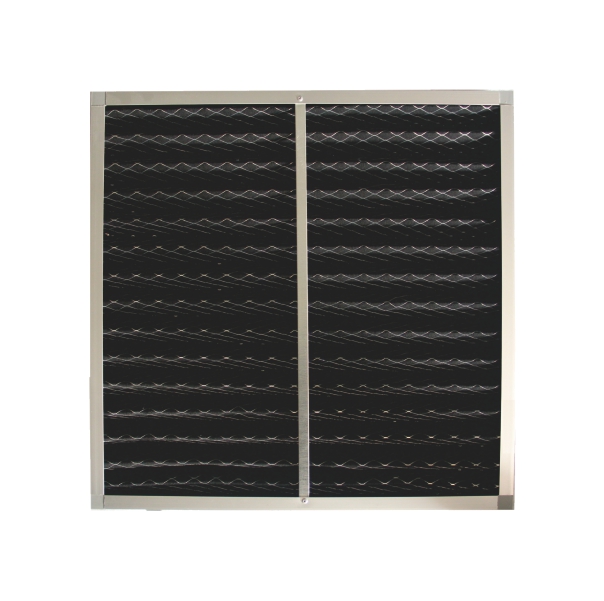

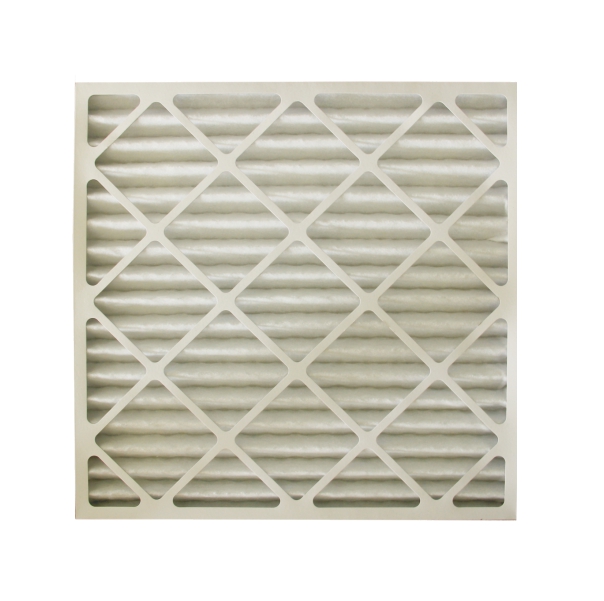

Primary-filter

Product description: Primary air filter is divied into three types, plate type, gathers type and bag type. Outer frame materials are paper and lead & cold spraying plastics, galvanized sheet, stainless steel sheet and so
INQUIRY EMAIL

Features:

low resistance, large air volume and long service life;

Uses:

widely applied to primary filtration of air conditioning system;

Optinal:

low efficiency non-woven cbloth filter material, activated carbon fiter material, metal mesh filter material, nylon mesh filter material, and disposable papter frame filter.

Technical Parameter

Model	Outlime dimensions（mm）	Air volume（m³/h）	Initial resistance（Pa）	Filter specifications
FG-32	595X595X45	3200	≤25	G2
FG-27	595X495X45	2700	≤25	G2
FG-16	595X295X45	1600	≤30	G3
FG-22	495X495X45	2200	≤30	G3
FG-13	495X295X45	1300	≤45	G4
FG-8	295X295X45	800	≤45	G4
