Air filter

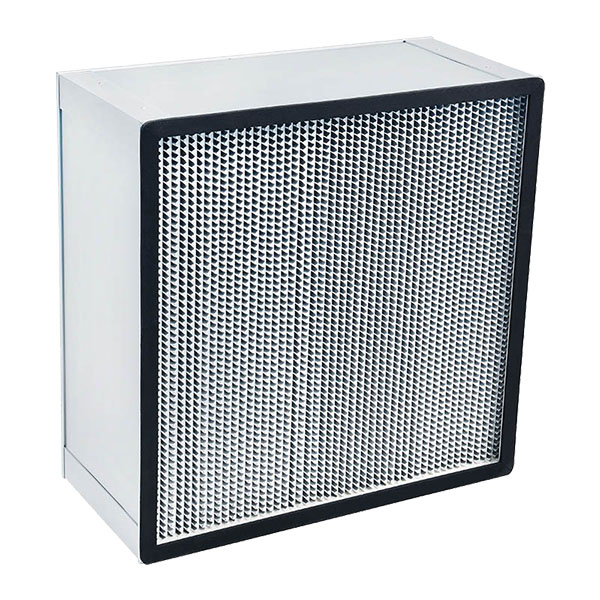

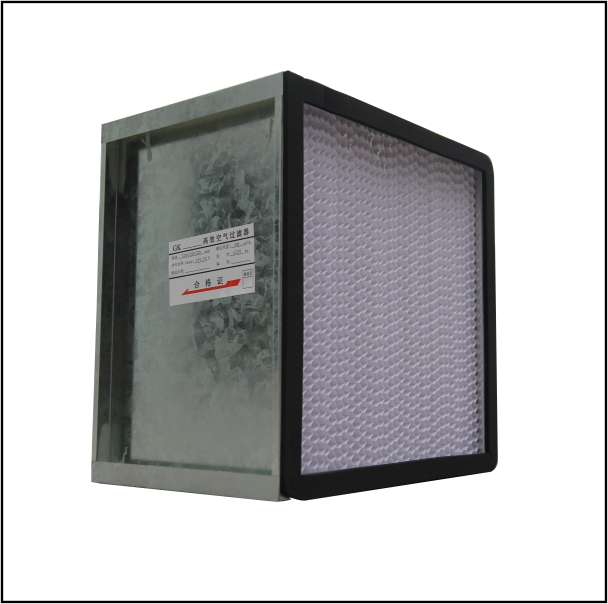

GKA high humidity resistant air filter

Product description: Product Features t has a partition structure, using special moisture-proof ultra-fine glass fiber filter paper, special offset paper or aluminum foil partition, galvanized sheet or aluminum alloy fra
INQUIRY EMAIL

Features

It is suitable for high humidity environment under normal temperature and normal pressure and high humidity conditions, especially in the pharmaceutical industry. The highest working humidity is 100%.
Galvanized sheet or aluminum alloy frame, offset paper or aluminum foil separator, high efficiency sealant.
Special moisture-proof glass fiber filter paper or ultra-fine glass fiber filter paper.

Technical Parameters

Model	Dimensions（mm）	Rated air volume（m³/h）	Initial resistance（Pa）	Filtration efficiency（%）	Dust holding capacity（g）
GK-5A	320320220	500	Straight partition structure≤235.44Pa	＜99.99Sodium flame method	400
GK-7A	484484150	700			450
GK-8A	600600150	800			500
GK-10A	484484220	1000			500
GK-10C	610610150	1000			600
GK-12A	820600150	1200			750
GK-15A	630630220	1500			900
GK-15B	726484220	1500			750
GK-15C	915610150	1500			850
GK-20A	968484220	2000			1200
GK-20B	1220610150	2200			1200
GK-22A	945630220	2200			1400
GK-20B	1260630220	3000			1600
