Purify doors and windows

  • Operating room airtight doors
  • Operating room airtight doors
Operating room airtight doorsOperating room airtight doors

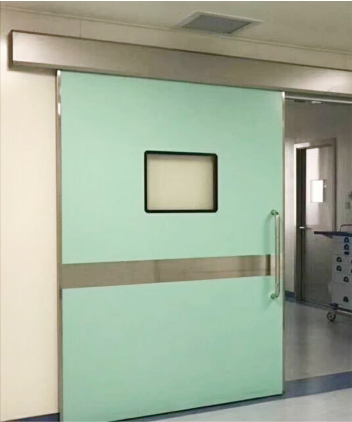

Operating room airtight doors

  • Professional rail change rail technology
  • Location Technology of Special Door Fan
  • The design of the sealing strip around the door leaf, the airtight performance meets international standards
  • Double-glazed windows, European style design
  • Product description: Special rail changing rail technology, when the door leaf is closed, the door leaf is offset to the door frame and the ground, and the sealing strip around the door leaf is completely fitted with th
  • INQUIRY   EMAIL

Produst statment:

The special door leaf positioning technology is matched with the spherical guide wheel by the double

inclined surface in the concave rail at the bottom of the door leaf. When the door leaf closes to the

ground, it is offset to the door frame at the same time. When the door leaf is moved away from the
ground, it is shifted away from the door frame. During the door leaf translation process, The bottom
concave rail is a translational track, and the door leaf is moved smoothly by the guide wheel, thereby
effectively preventing the door leaf from swinging. The power beam is a high-strength aluminum alloy
profile, and the overall structure is reasonable and reliable. Operating life of more than 1 million times.
The power beam is suspended from the outer wall surface for easy installation. The overall operation
is low noise and meets the requirements of hospital use.

The interior of the door leaf adopts the rigid high-pressure foaming process of the polyurethane, and

the 304 stainless steel frame is pressed and formed by the large platform of the automatic lifting

hydraulic equipment. Special equipment and processes ensure good flatness of the door leaf. The
surface of the door leaf can be decorated with large flat matt stainless steel plates, spray-coated steel
plates, aluminum plates, electrolytic plates, PVC plates, etc. according to user requirements. The
door leaf panels can be selected from a variety of spray colors.
