Purify doors and windows

  • Mechanism plate steel door

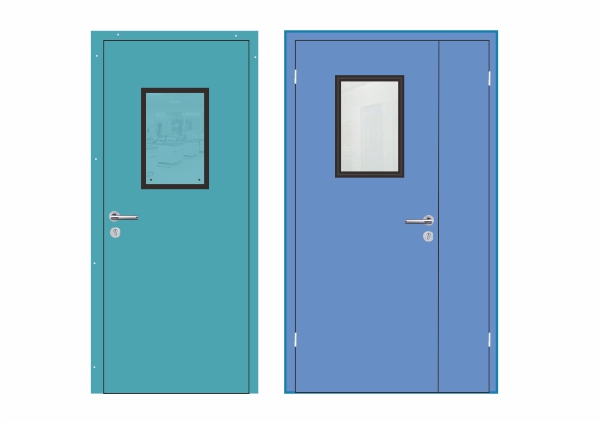

Mechanism plate steel door

Mechanism plate steel door

  • Made by SPCC
  • Door frame adopts SPCC 1.5mm
  • Door panel adopts SPCC1.0mm
  • Product description: After the frame is formed, it is clamped with the wall of the mechanism plate to achieve the characteristics of less clean angle and easy to clean. which meets the requirements of less shade angle
  • INQUIRY   EMAIL

Characteristics:

Dust-free, easy to clean, beautiful appearance, good airtightness

Purpose:

Pharmaceutical, Food, Electronics, Laboratory, Hospital and other clean workshops.

Material: Made of SPCC, the door frame is SPCC1.0mm, the surface is coated, the door body is

sandwiched with paper honeycomb, the thickness of the door is 50mm.

Configuration:

Stainless steel split lock, pressing ball lock, automatic dust bar, door closer selection.

Tempered glass double-layer window, conventionally right-angled window: 400mm*600mm can be equipped with external inner or circular angle window.

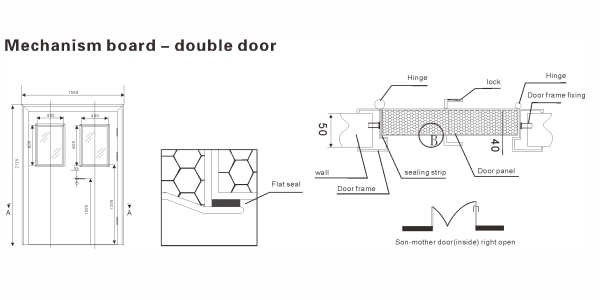

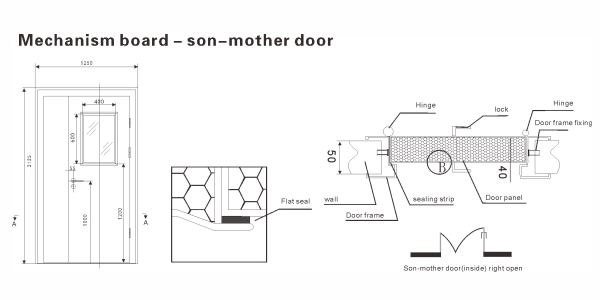

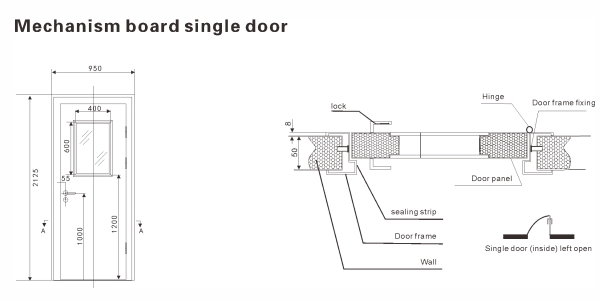

Mechanism plate steel door installation diagram



Technical Parameter

                                 Model
Parameter
Single door Double door unequal double door
Steel plate thickness (mm) 0.8-1.2
Door thickness (mm) 50
Door size (W * Hmm) 900*2100 1500*2100 1200*2100
Hole size (W * Hmm) 970*2130 1570*2130 1270*2130


Inquiry
